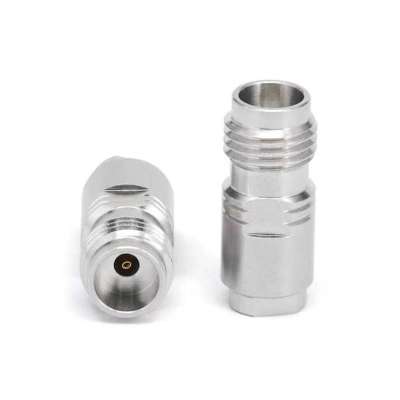

Flexi RF’s FR1-2.4/GPPO-KK is a precision-engineered 2.4mm female to GPPO (Mini-SMP) female coaxial adapter, designed to support high-frequency signal transmission from DC up to 50 GHz. This straight-body RF adapter ensures low insertion loss, VSWR of 1.25, and excellent signal integrity, making it ideal for a wide range of high-performance RF and microwave applications.

Built to withstand the rigorous demands of industries such as aerospace & defense, RF communication, industrial systems, and test & measurement, this adapter features a stainless steel body on the 2.4mm side and beryllium copper on the GPPO (Mini-SMP) side, offering both mechanical strength and superior electrical performance.

This adapter is part of Flexi RF’s catalog of over 10,000 RF, microwave, and millimeter-wave components, including adapters, terminations, attenuators, and custom cable assemblies—all available for same-day worldwide shipping.

Buy now - https://flexirf.com/products/2....-4mm-female-to-gppo-

For more Visit Here - https://flexirf.com/products/d....c-block-on-inner-con

The FR1-2.4/GPPO-KK is a high-performance coaxial adapter featuring a 2.4mm female to GPPO (Mini-SMP) female interface, designed for applications up to 50 GHz. This straight-body adapter delivers excellent microwave performance with low insertion loss and a VSWR of 1.25, ensuring signal integrity in high-frequency systems.

Constructed with a stainless steel body on the 2.4mm side and beryllium copper on the GPPO side, this adapter balances strength and conductivity. Its robust design makes it ideal for demanding sectors such as military & aerospace, RF communications, test & measurement, and industrial electronics.

Part of a comprehensive inventory of 10,000+ RF, microwave, and mmWave products available for same-day global shipping, this adapter is backed by responsive technical support and custom solution capabilities.

Key Specifications

Product Configuration:

Connector 1: 2.4mm Female

Connector 2: GPPO (Mini-SMP) Female

Impedance: 50 Ohms (both sides)

Body Style: Straight

Polarity: Standard

Electrical Specifications:

Frequency Range: DC to 50 GHz

VSWR: 1.25

Insertion Loss: ≤ 0.05 × √f(GHz)

Mechanical Details:

Connector 1 Body Material: Stainless Steel, Passivated

Connector 2 Body Material: Beryllium Copper, Gold Plated

Mating Cycles (Min): ≥500

Weight: 5.1 g

Environmental Specifications:

Operating Temperature: -55 ºC to +165 ºC

RoHS Compliant: Yes

For detailed performance data and compatibility information, please download the datasheet provided above or contact our technical support team.
